UI-to-API Field Mapping Guides

Use the following Field Mapping tables to translate UI queries into API calls for Search and Entity API endpoints.

DarkOwl Vision UI to Search API Field Map

Base search options:

  • Search bar
  • Next page of results
  • Sort options
  • De-duplicate result sets
  • Using date parameters

Searching for tokenized entities in results:

  • Find credit card numbers within documents
  • Find social security numbers within documents
  • Find email addresses within documents
  • Find email addresses from a domain in documents
  • Find IP addresses within documents
  • Find cryptocurrency addresses within documents
  • Find website mentions within documents

Using filters:

  • Filter to results from a data leak
  • Filter to results from a data source
  • Filter to results classified as a particular group
  • Filter to results scored with Hackishness
  • Filter to results in a certain language
  • Filter to results from a particular domain
  • Filter to results that have particular entities in them
  • Filter to results that have a certain number of entities in them

Additional response options

DarkOwl Vision UI to Entity API Field Map

Base entity options: 

  • Email Domain
  • Email
  • Address
  • BIN
  • Credit Card
  • IP Address
  • Cryptocurrency

Pagination:

  • Get Next Page of Results

Filter options:

  • Using Date Parameters

Get source document:

  • See Full Result using Search API

 

DarkOwl Vision UI to Search API Field Map

Base search options (Search)

Search bar

Any text that goes directly into the search bar in the UI goes directly into the 'q' field. All keywords, Boolean operators, regex, etc. Note: All API examples in this document are shown before URL encoding.

UI API

Search Bar

'q'

 A picture containing text, screenshot, font, line Description automatically generated

/api/v1/search?q="keyword search" AND (words OR otherwords)

Next page of results

By default, a page in both UI and API are 20 results. To go to the next 'page' via API, do the exact same search but with offset=20 for the second page, offset=40 for the third, and so on.

UI API

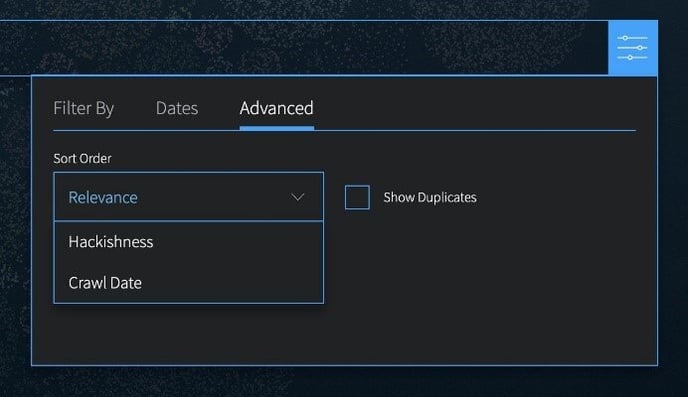

Filters -> Advanced -> Sort

'sort'

 Graphical user interface Description automatically generated

/api/v1/search?sort=r (Relevance)

/api/v1/search?sort=d (Crawl Date)

/api/v1/search?sort=h (Hackishness)

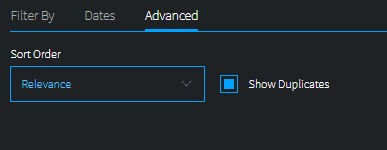

De-duplicate result sets

UI API

Filters -> Advanced -> Show Duplicates

   Box checked - similar=true

   Box unchecked -similar=false

'similar'

 Graphical user interface Description automatically generated

/api/v1/search?similar=true

/api/v1/search?similar=false

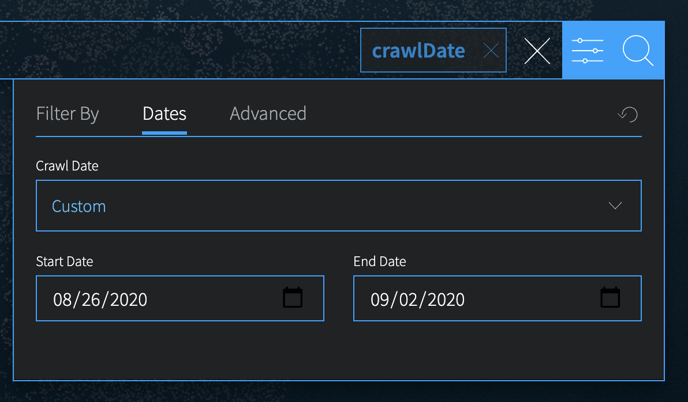

Using date parameters

Use 'to' and 'from' together to form a range, or just set 'from' to a period in the past (i.e. 6 hours) to find all documents found in the last 6 hours. Keep in mind that while crawl date in the UI is displayed in local time, the API parameters and crawlDate field returned are in UTC.

UI API

Filters -> Dates

'to' and 'from'

 A screenshot of a cell phone Description automatically generated

/api/v1/search?from=2020-08-26T00:00:00Z&to=2020-09-02T00:00:00Z

Searching for tokenized entities in results (Search):

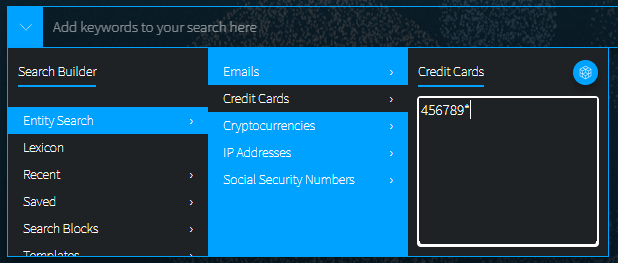

Find credit card numbers within documents

Full credit card number or BIN searching is available in both the UI and API. For full credit card numbers, type the number in the Credit Card search builder. For BIN searching (example below), type the BIN digits and a wildcard character (*) in the Credit Card search builder.

UI API

Search Builders -> Entity Search -> Credit Cards

'ccn'

 A screenshot of a computer Description automatically generated with medium confidence

/api/v1/search?ccn=456789*

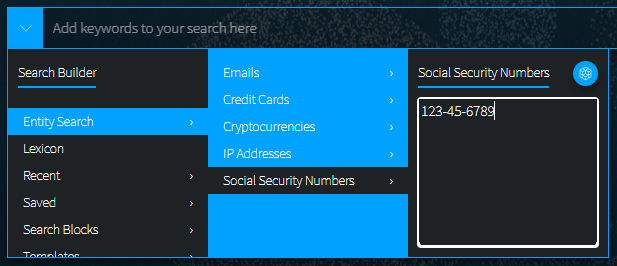

Find social security numbers within documents

UI API

Search Builders -> Entity Search -> Social Security Numbers

'ssn'

 A screenshot of a computer Description automatically generated with medium confidence

/api/v1/search?ssn=123-45-6789

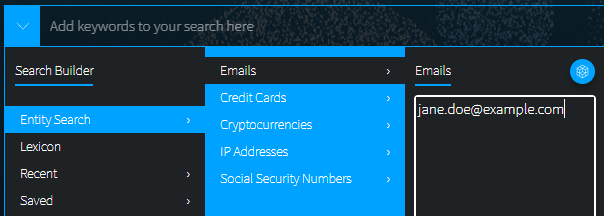

Find email addresses within documents

UI API

Search Builders -> Entity Search -> Emails

'email'

 A screenshot of a computer Description automatically generated with medium confidence

/api/v1/search?email=jane.doe@example.com

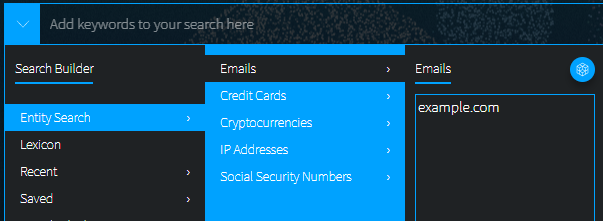

Find all email addresses from a domain within documents

UI API

Search Builders -> Entity Search -> Emails

'emailDomain'

 A screenshot of a computer Description automatically generated with medium confidence

/api/v1/search?emailDomain=example.com

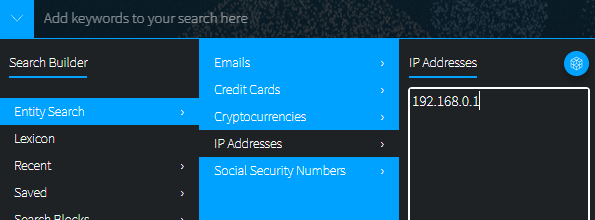

Find IP addresses within documents

For API, you can use either the 'ipAddress' field or just use the q field.

UI API

SSearch Builders -> Entity Search -> IPs

'ipAddress' or 'q'

 Graphical user interface, application Description automatically generated

/api/v1/search?ip=192.168.0.1

/api/v1/search?q=192.168.0.1

Find website mentions within documents

UI API

Search Builders -> Entity Search -> Website Mentions

'websiteMention'

 Graphical user interface, application Description automatically generated

/api/v1/search?websiteMention=example.com

Using filters (Search):

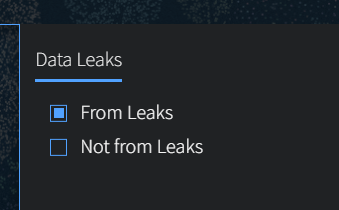

Filter to results from a data leak

UI API

Filters -> Data Leaks

'leak'



/api/v1/search?leak=any

/api/v1/search?leak=-any

Filter to results collected from a data network

UI API

Filters -> Data Network

'source'

 A picture containing text Description automatically generated

/api/v1/search?source=onion



Other source values are:

discord, ftp, i2p, irc, onion, openNIC, telegram, zeronet

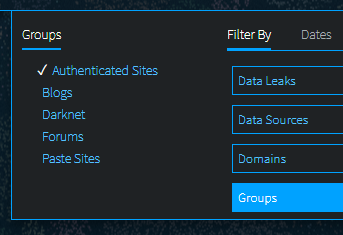

Filter to results classified as a particular group or type

UI API

Filters -> Groups

'group'

 Graphical user interface, text Description automatically generated

/api/v1/search?group=authenticated

Other group values include:

blogs              markets

chans             pastes

darknets        ransomware

forums



Filter to results scored with Hackishness

Hackishness in the UI is displayed as a percentage value, but it's really a floating point value between 0 and 1. Hackishness of "50%" in the UI is equivalent to 0.5 in the API.

UI API

Filters -> Hackishness Range Slider

'hack_min' and 'hack_max'

 Text Description automatically generated

/api/v1/search?hack_min=.15&hack_max=.80

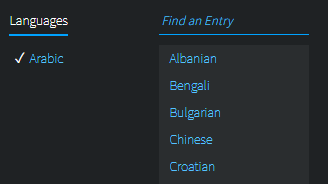

Filter to results in a certain language

UI API

Filter by -> Languages

'lang'

 Graphical user interface, application Description automatically generated

/api/v1/search?lang=Arabic



Value options located here

Filter to results that were collected from a particular domain

UI API

Filters -> Source Domains

'domain'



/api/v1/search?domain=qzb2oj5d.onion

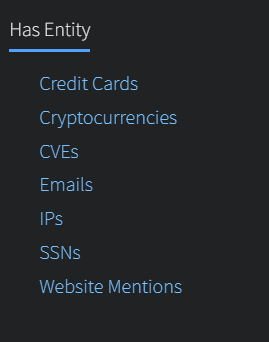

Filter to results that have particular entities in them

UI

API

Filters -> Has Entity

'has'



/api/v1/search?has=email

/api/v1/search?has=ssn

/api/v1/search?has=ccn

/api/v1/search?has=cryptocurrency

/api/v1/search?has=ip

/api/v1/search?has=website

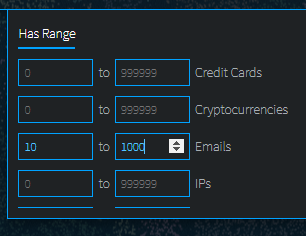

Filter to results that have a certain number of entities in them

UI

API

Filters -> Has Range (Credit Cards)

Filters -> Has Range (Cryptocurrencies)

Filters -> Has Range (Emails)

Filters -> Has Range (IPs)

Filters -> Has Range (SSNs)

Filters -> Has Range (Websites)

'cccn_min' and 'cccn_max'

'ccrypto_min' and 'ccrypto_max'

'cemail_min' and 'cemail_max'

'cip_min' and 'cip_max'

'cssn_min' and 'cssn_max'

'cwebsite_min' and 'cwebsite_max'

 Graphical user interface Description automatically generated

/api/v1/search?cemail_min=10&
cemail_max=1000

Additional Response Options (Search):

The following API parameters can be used according to your preference. The DarkOwl Vision UI uses the following defaults:

  • req (false)
  • detail (full)
  • count (20)
  • highlight (true)
  • empty (false)



DarkOwl Vision UI to Entity API Field Map

Base entity options (Entity): 

Email Domain 

Use to search for all email addresses belonging to one domain or one subdomain. Search for the domain portion only; do not include @ symbols, etc. 

UI API
A close up of a logo Description automatically generated /api/v1/entity/email-domain?domain=darkowl.com

Email Address

Use to search for a single email address. Use the /email-domain endpoint to search for email addresses across an entire domain.

UI API
A close up of a computer screen Description automatically generated /api/v1/entity/email-address?address=support@darkowl.com

BIN

UI API
A blue background with white text Description automatically generated /api/v1/entity/bin?bin=123456 

Credit Card

UI

API
A number on a blue background Description automatically generated /api/v1/entity/ccn?ccn=12345678909876

IP Address

UI API
A screen shot of a computer Description automatically generated //api/v1/entity/ip-address?address=192.68.0.0

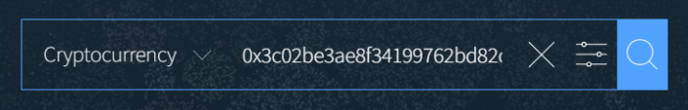

Cryptocurrency

UI

 API
/api/v1/entity/crypto-address?address= 0x3c02be3ae8f34199762bd82c3fa2d837ac924f56

Pagination (Entity):

When a query has more than one page of results, a nextPage value will be returned in the API response. The results in your first page of results are the most recent results in the DarkOwl Vision dataset. This value can be passed back through the nextPage parameter to receive the next page of results.

UI API
/api/v1/entity/nextPage=[valuereturned]

Filtering Options (Entity):

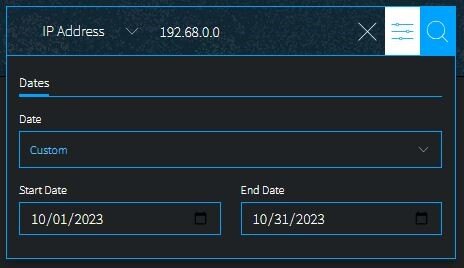

Using Date Parameters 

Use 'to' and 'from' together to form a range, or just set 'from' to a period in the past (i.e. prior 7 days). Keep in mind that while crawl date in the UI is displayed in local time, the API parameters and crawlDate field returned are in UTC. 

UI API

Filters -> Dates 

'to' and 'from' 
A screenshot of a computer Description automatically generated

/api/v1/entity/ip-address?address=192.68.0.0& from=2023-10-01T00:00:00Z&to=2023-10-30T00:00:00Z 

Date parameters are available in all entity endpoints; example shown is ip address.

Get source document (Search/Entity):

See Full Result using Search API

Enrichment Option: The Entity endpoint will return a snippet from the full document, along with an id value. This id value references the original document in which the entity was discovered. If part of your API subscription, this id value can be passed to the Search API endpoint in order to retrieve the full document result.

UI API

See Full Result

 Use id value with Search API q field
/api/v1/search?q=[idvalue]
